Buy or Sell Mellanox Switch-IB 2 Switch

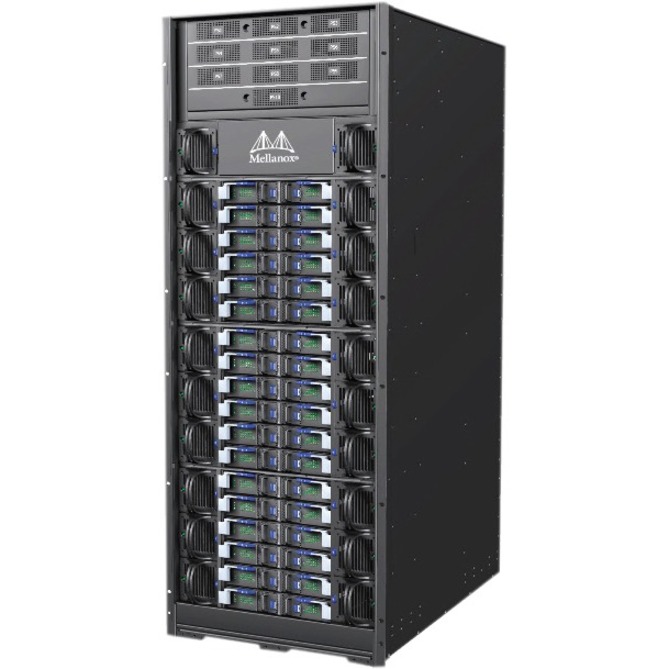

Mellanox provides the world’s first smart switch, enabling in-network computing through the Co-Design SHARP™ technology. The CS7500 system provides the highest performing fabric solution in a 28U form factor by delivering 130Tb/s of full bi-directional bandwidth with 400ns port latency.

SCALING-OUT DATA CENTERS WITH EXTENDED DATA RATE (EDR) INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox’s next generation of EDR InfiniBand high-speed smart switches.

SUSTAINED NETWORK PERFORMANCE
Built with Mellanox’s latest Switch-IB™ InfiniBand switch devices, the CS7500 provides up to 648 100Gb/s full bi-directional bandwidth per port. The CS7500 modular chassis switch provides an excellent priceperformance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.

The CS7500 is the world’s first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.
